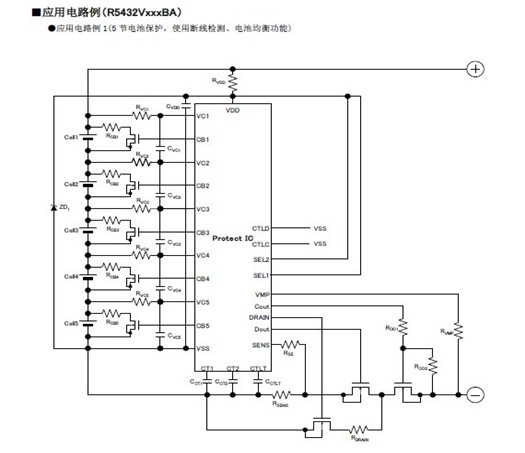

3-5 sections with break detection, balanced, cascade protection chip Typical applications
Add date:11/8/2013 12:30:35 PM


When the charging FET is turned off, the discharge current can flow from the parasitic diode of the charging FET. When the discharge FET is turned off, the charging current can be discharged from the discharge With the FET on the parasitic diode flow. Please according to the size of the charge and discharge current, select the appropriate FET to ensure that the current flows through the parasitic diode, not on Damage of the FET where the parasitic path is present.
